Submit Papers đŠTotal No. of Questions : 11
[Total No. of Printed Pages : 06
OP-502
M.Sc. (REG/PVT./ATKT) Examination, 2024
(Fourth Semester)
MATHEMATICS
Advanced Graph Theory-II
Paper-III
Time : 3 Hours
[Maximum Marks :
Reg. : 85
Pvt. : 100
Note : Attempt all questions.
(Objective Type Questions)
1. Choose the correct answer : 5×3=15
(i) Let G be a connected graph with n vertices, e edges and r regions. Then :
(ii) A connected graph G is an Eulerian graph if all vertices of G are of :
(a) even degree
(b) odd degree
(c) even or odd degree
(d) All of the above
(iii) The minimum number of colors needed to color a graph having n (> 3) vertices and 2 edges is :
(a) 4
(b) 3
(c) 2
(d) 1
(iv) If A(G) is an incidence matrix of a connected graph G with n vertices, then rank of A(G) is :
(a) n
(b) n - 1
(c) n + 1
(d) None of the above
(v) What would be the number of zeroes in the adjacency matrix of the given graph ?
(a) 10
(b) 6
(c) 16
(d) 0
(Short Answer Type Questions) 5×5=25
2. Define incidence matrix with example.
Or
Define fundamental circuit matrix with example.
3. Every cut-set in a connected graph G contains at least one branch of every spanning tree of G. Prove.
Or
Define adjacency matrix with example.
4. Explain Geometrical dual and Combinational dual with an example.
Or
Write a note on chromatic number.
(Long Answer Type Questions) 5×9=45
5. State four color problem.
Or
Explain Digraphs and Binary relations.
6. Define adjacency matrix of a Digraph.
Or
Write a short note on Arboreocence.
7. Explain in detail an application of graph theory in switching network.
Or

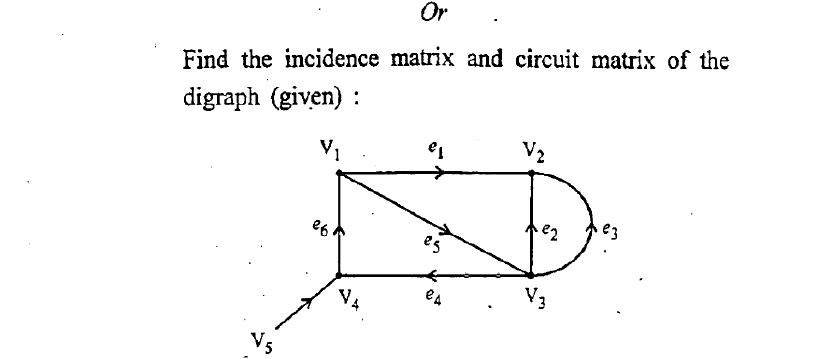

Find the incidence matrix and circuit matrix of the digraph (given) :
8. Write various observations that can be made about a path matrix P(x, y) of a graph G.
Or
Draw the graph represented by the following adjacency matrix A :
V1 V2 V3 V4 V5
V1 [0 1 1 0 0]
V2 [1 0 1 0 0]
V3 [1 1 0 1 1]
V4 [0 0 1 0 1]
V5 [0 0 1 1 0]
9. Prove that the chromatic function of a simple graph is a polynomial.
Or
Prove that, if G is a disconnected simple graph, then its chromatic polynomial PG(k) is the product of the chromatic polynomials of its component.
10. Prove that every simple planar graph is 4-colourable.
Or
A graph with maximum degree at most k is (k + 1) colorable.
11. Prove that the maximum number of arc-disjoint paths from a vertex V to a vertex W in a digraph is equal to the minimum number of arcs in a VW-disconnecting set.
Or
Write short notes on the following :
(a) Trees with directed graph
(b) Arboreocence
(c) Matrix of Digraphs.
